Thoracolumbar Systems · Pedicle Screws

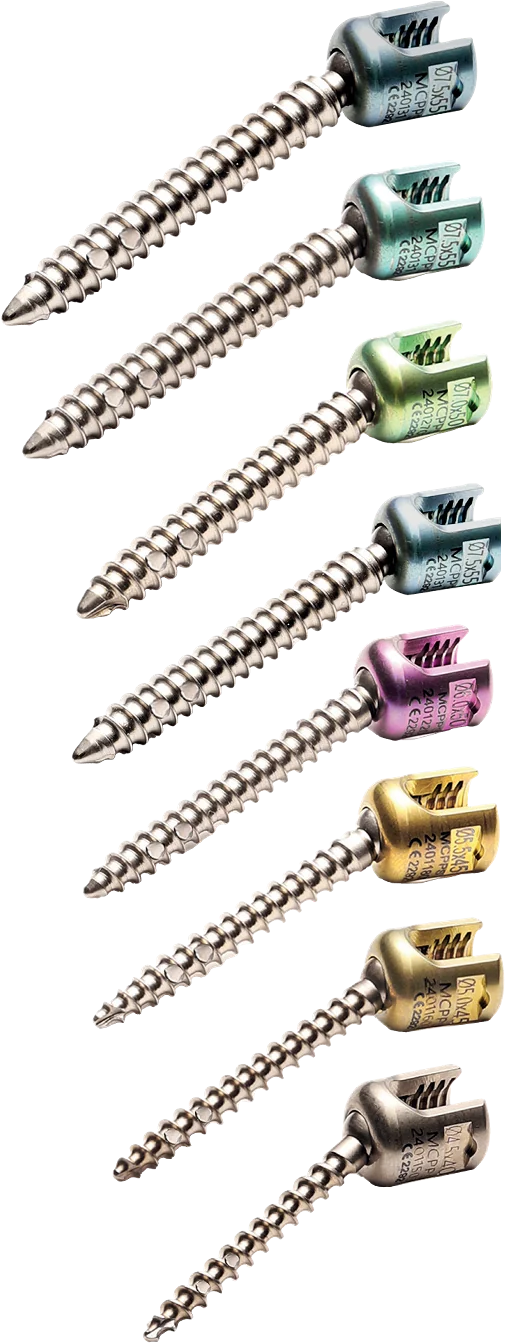

Multiaxial Screw Cement Type
Multiaxial Screw Cement Type from the Medical Consept Thoracolumbar Systems range. The catalogue lists 62 reference codes covering Ø4.5–8 mm diameters and 25–65 mm lengths. Material: Titanium alloy (Ti6Al4V ELI).
- MaterialTitanium alloy (Ti6Al4V ELI)
- DiameterØ4.5–8 mm
- Length25–65 mm
- Catalogue codes62
Technical specifications
Product specifications
- Product type
- Screw
- Material
- Titanium alloy (Ti6Al4V ELI)
- Diameter range
- Ø4.5–8 mm
- Length range
- 25–65 mm
- Head design
- Polyaxial
- Angulation
- Contact us for details
- Rod compatibility
- Compatible with Ø5.5 mm and Ø6.0 mm rods (Thoracolumbar system overview, catalogue PDF p. 13)
- Reference codes
- 62 in catalogue
- Source
- Medical Consept Thoracolumbar catalogue, PDF p. 24
Need more detail?
Indications, sterilisation and packaging information, IFUs and surgical techniques are provided on request.
Ask about this product
Available sizes
Reference codes & dimensions
62 codes as printed in the catalogue. Quote the reference code in your inquiry for the exact size.
| Ø (mm) ↓ / Length (mm) → | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 |
|---|---|---|---|---|---|---|---|---|---|
| Ø 4.5 | MCMSC-4.5x25 | MCMSC-4.5x30 | MCMSC-4.5x35 | MCMSC-4.5x40 | MCMSC-4.5x45 | MCMSC-4.5x50 | — | — | — |
| Ø 5 | — | MCMSC-5x30 | MCMSC-5x35 | MCMSC-5x40 | MCMSC-5x45 | MCMSC-5x50 | MCMSC-5x55 | MCMSC-5x60 | MCMSC-5x65 |
| Ø 5.5 | — | MCMSC-5.5x30 | MCMSC-5.5x35 | MCMSC-5.5x40 | MCMSC-5.5x45 | MCMSC-5.5x50 | MCMSC-5.5x55 | MCMSC-5.5x60 | MCMSC-5.5x65 |
| Ø 6 | — | MCMSC-6x30 | MCMSC-6x35 | MCMSC-6x40 | MCMSC-6x45 | MCMSC-6x50 | MCMSC-6x55 | MCMSC-6x60 | MCMSC-6x65 |
| Ø 6.5 | — | MCMSC-6.5x30 | MCMSC-6.5x35 | MCMSC-6.5x40 | MCMSC-6.5x45 | MCMSC-6.5x50 | MCMSC-6.5x55 | MCMSC-6.5x60 | MCMSC-6.5x65 |
| Ø 7 | — | MCMSC-7x30 | MCMSC-7x35 | MCMSC-7x40 | MCMSC-7x45 | MCMSC-7x50 | MCMSC-7x55 | MCMSC-7x60 | MCMSC-7x65 |
| Ø 7.5 | — | MCMSC-7.5x30 | MCMSC-7.5x35 | MCMSC-7.5x40 | MCMSC-7.5x45 | MCMSC-7.5x50 | MCMSC-7.5x55 | MCMSC-7.5x60 | MCMSC-7.5x65 |
| Ø 8 | — | MCMSC-8x30 | MCMSC-8x35 | MCMSC-8x40 | MCMSC-8x45 | MCMSC-8x50 | MCMSC-8x55 | MCMSC-8x60 | MCMSC-8x65 |
Compatible systems & instruments
Complete thoracolumbar solution
Instrument set(s) presented with this system in the catalogue.
