Thoracolumbar Systems · Pedicle Screws

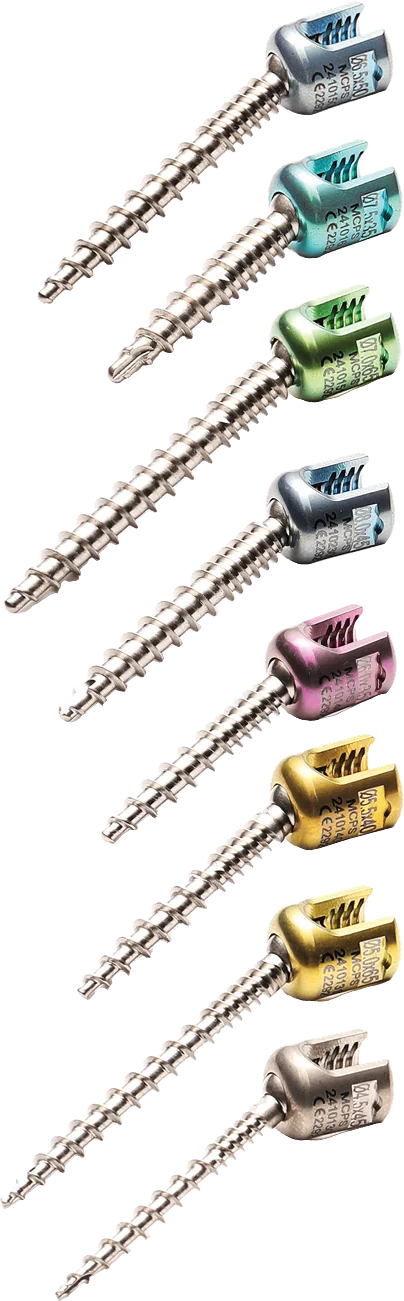

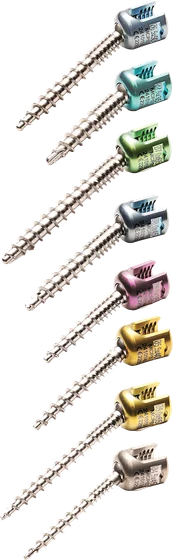

Polyaxial Screw

Polyaxial Screw from the Medical Consept Thoracolumbar Systems range. The catalogue lists 56 reference codes covering Ø5–8 mm diameters and 30–65 mm lengths. Material: Titanium alloy (Ti6Al4V ELI).

MaterialTitanium alloy (Ti6Al4V ELI)
DiameterØ5–8 mm
Length30–65 mm
Catalogue codes56

Request Information Download Catalogue

Key features

Designed for secure fixation

Design features as described in the Thoracolumbar catalogue.

Rod-locking mechanism

Provides secure and stable locking between the screw head and the rod.

Dual-thread design

Dual-thread geometry intended to increase purchase in cortical and cancellous bone.

Self-drilling tip

Designed to reduce the need for pilot drilling.

Self-tapping thread

Cuts its own thread in bone during insertion for safe, controlled advancement.

Technical specifications

Product specifications

Product type: Screw
Material: Titanium alloy (Ti6Al4V ELI)
Diameter range: Ø5–8 mm
Length range: 30–65 mm
Head design: Polyaxial
Angulation: 30° angulation, 360° rotation (catalogue diagram)
Rod compatibility: Compatible with Ø5.5 mm and Ø6.0 mm rods (Thoracolumbar system overview, catalogue PDF p. 13)
Reference codes: 56 in catalogue
Source: Medical Consept Thoracolumbar catalogue, PDF p. 18, 19

Need more detail?

Indications, sterilisation and packaging information, IFUs and surgical techniques are provided on request.

Ask about this product

Available sizes

Reference codes & dimensions

56 codes as printed in the catalogue. Quote the reference code in your inquiry for the exact size.

Ø (mm) ↓ / Length (mm) →	30	35	40	45	50	55	60	65
Ø 5	MCPS-5X30	MCPS-5X35	MCPS-5X40	MCPS-5X45	MCPS-5X50	MCPS-5X55	MCPS-5X60	MCPS-5X65
Ø 5.5	MCPS-5.5X30	MCPS-5.5X35	MCPS-5.5X40	MCPS-5.5X45	MCPS-5.5X50	MCPS-5.5X55	MCPS-5.5X60	MCPS-5.5X65
Ø 6	MCPS-6X30	MCPS-6X35	MCPS-6X40	MCPS-6X45	MCPS-6X50	MCPS-6X55	MCPS-6X60	MCPS-6X65
Ø 6.5	MCPS-6.5X30	MCPS-6.5X35	MCPS-6.5X40	MCPS-6.5X45	MCPS-6.5X50	MCPS-6.5X55	MCPS-6.5X60	MCPS-6.5X65
Ø 7	MCPS-7X30	MCPS-7X35	MCPS-7X40	MCPS-7X45	MCPS-7X50	MCPS-7X55	MCPS-7X60	MCPS-7X65
Ø 7.5	MCPS-7.5X30	MCPS-7.5X35	MCPS-7.5X40	MCPS-7.5X45	MCPS-7.5X50	MCPS-7.5X55	MCPS-7.5X60	MCPS-7.5X65
Ø 8	MCPS-8X30	MCPS-8X35	MCPS-8X40	MCPS-8X45	MCPS-8X50	MCPS-8X55	MCPS-8X60	MCPS-8X65
