Thoracolumbar Systems · Pedicle Screws

I-Type Polyaxial Screw

I-Type Polyaxial Screw from the Medical Consept Thoracolumbar Systems range. The catalogue lists 25 reference codes covering Ø4.5–6 mm diameters and 25–65 mm lengths. Material: Titanium alloy (Ti6Al4V ELI).

MaterialTitanium alloy (Ti6Al4V ELI)
DiameterØ4.5–6 mm
Length25–65 mm
Catalogue codes25

Request Information Download Catalogue

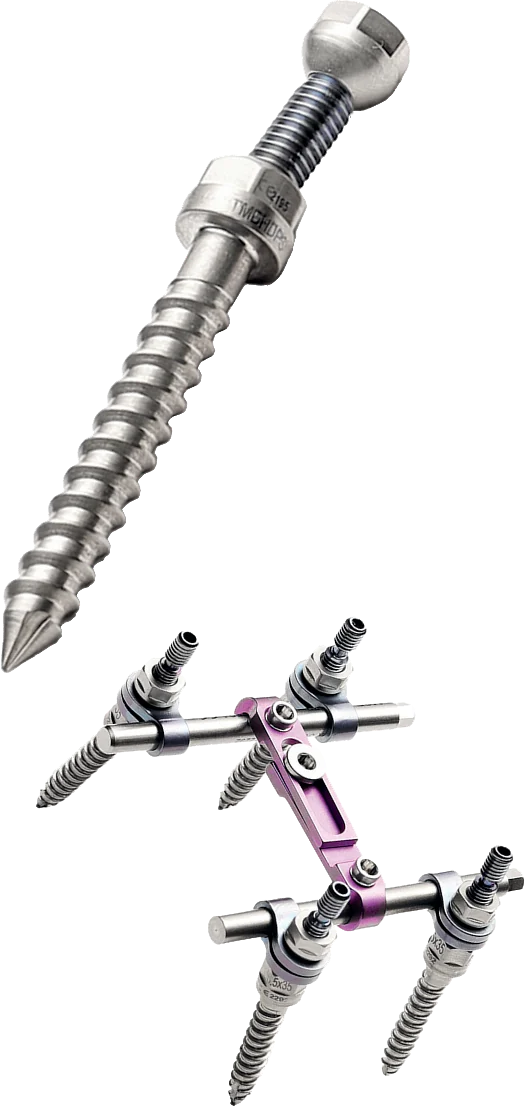

I-Type Polyaxial Screw – catalogue image

Technical specifications

Product specifications

Product type: Screw
Material: Titanium alloy (Ti6Al4V ELI)
Diameter range: Ø4.5–6 mm
Length range: 25–65 mm
Head design: Polyaxial
Angulation: Contact us for details
Rod compatibility: Compatible with Ø5.5 mm and Ø6.0 mm rods (Thoracolumbar system overview, catalogue PDF p. 13)
Reference codes: 25 in catalogue
Source: Medical Consept Thoracolumbar catalogue, PDF p. 29

Need more detail?

Indications, sterilisation and packaging information, IFUs and surgical techniques are provided on request.

Ask about this product

Available sizes

Reference codes & dimensions

25 codes as printed in the catalogue. Quote the reference code in your inquiry for the exact size.

Ø (mm) ↓ / Length (mm) →	25	30	35	40	45	50	55	60	65
Ø 4.5	MCITPS-45x25	MCITPS-45x30	MCITPS-45x35	MCITPS-45x40	MCITPS-45x45	MCITPS-45x50	—	—	—
Ø 5	—	MCITPS-5x30	MCITPS-5x35	MCITPS-5x40	MCITPS-5x45	MCITPS-5x50	MCITPS-5x55	MCITPS-5x60	MCITPS-5x65
Ø 5.5	—	MCITPS-5.5x30	MCITPS-5.5x35	MCITPS-5.5x40	MCITPS-5.5x45	MCITPS-5.5x50	MCITPS-5.5x55	MCITPS-5.5x60	MCITPS-5.5x65
Ø 6	—	MCITPS-6x30	MCITPS-6x35	MCITPS-6x40	—	—	—	—	—
