Posterior Cervical Systems · Polyaxial Screws

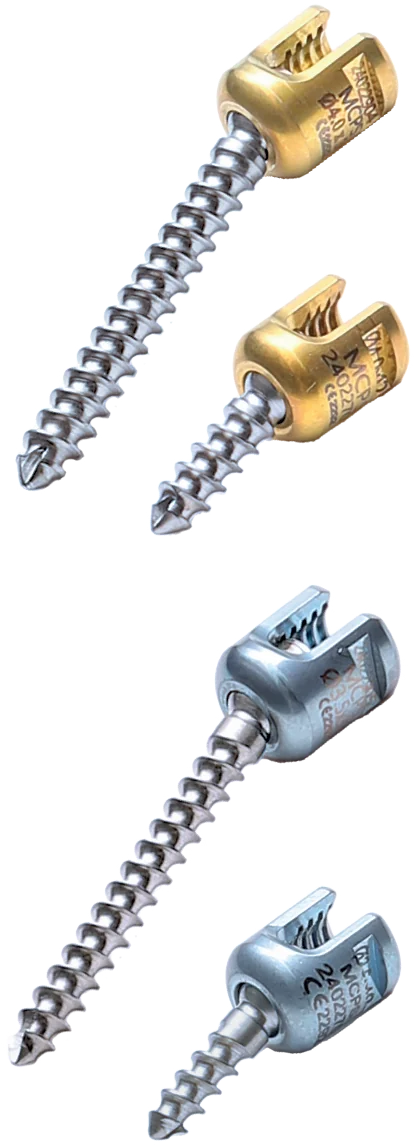

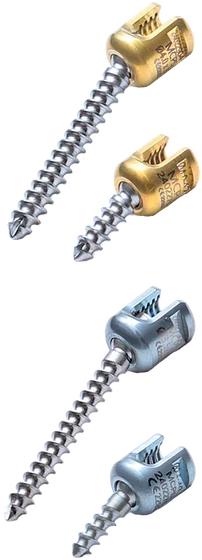

Polyaxial Screw

Polyaxial Screw from the Medical Consept Posterior Cervical Systems range. The catalogue lists 39 reference codes covering Ø3–4.5 mm diameters and 10–50 mm lengths. Material: Titanium alloy (Ti6Al4V ELI).

MaterialTitanium alloy (Ti6Al4V ELI)
DiameterØ3–4.5 mm
Length10–50 mm
Catalogue codes39

Request Information Download Catalogue

Key features

Designed for secure fixation

Design features as described in the Posterior Cervical catalogue.

Rod-locking mechanism

Provides secure and stable locking between the screw head and the rod.

Self-drilling tip

Designed to reduce the need for pilot drilling.

Self-tapping thread

Cuts its own thread in bone during insertion for safe, controlled advancement.

Technical specifications

Product specifications

Product type: Screw
Material: Titanium alloy (Ti6Al4V ELI)
Diameter range: Ø3–4.5 mm
Length range: 10–50 mm
Head design: Polyaxial
Angulation: 30° angulation, 360° rotation (catalogue diagram)
Reference codes: 39 in catalogue
Source: Medical Consept Posterior Cervical catalogue, PDF p. 10, 11

Need more detail?

Indications, sterilisation and packaging information, IFUs and surgical techniques are provided on request.

Ask about this product

Available sizes

Reference codes & dimensions

39 codes as printed in the catalogue. Quote the reference code in your inquiry for the exact size.

Ø (mm) ↓ / Length (mm) →	10	12	14	16	18	20	22	24	25	26	28	30	35	40	45	50
Ø 3	MCPS-3X10	MCPS-3X12	MCPS-3X14	MCPS-3X16	MCPS-3X18	MCPS-3X20	MCPS-3X22	MCPS-3X24	—	MCPS-3X26	MCPS-3X28	MCPS-3X30	—	—	—	—
Ø 3.5	MCPS-3.5X10	MCPS-3.5X12	MCPS-3.5X14	MCPS-3.5X16	MCPS-3.5X18	MCPS-3.5X20	MCPS-3.5X22	MCPS-3.5X24	—	MCPS-3.5X26	MCPS-3.5X28	MCPS-3.5X30	—	—	—	—
Ø 4	MCPS-4X10	MCPS-4X12	MCPS-4X14	MCPS-4X16	MCPS-4X18	MCPS-4X20	MCPS-4X22	MCPS-4X24	—	MCPS-4X26	MCPS-4X28	MCPS-4X30	—	—	—	—
Ø 4.5	—	—	—	—	—	—	—	—	MCPS-45X25	—	—	MCPS-45X30	MCPS-45X35	MCPS-4.5X40	MCPS-4.5X45	MCPS-4.5X50
